POCUS Buying Guide 2026 Edition About 12 min read

7 Best Portable Ultrasound Machines for POCUS (2026): 7 Handheld Systems Compared

Seven handheld ultrasound systems compared across probe coverage, upfront price, software fees, device compatibility, data export and warranty. This guide separates verifiable specifications from the workflow details buyers should confirm before purchase.

Research and fact-checking DRSONO Editorial Team
Updated Prices and terms verified
GE HealthCare Vscan Air CL handheld ultrasound scanner Clarius PAL HD3 wireless ultrasound scanner Butterfly iQ3 handheld ultrasound probe Mindray TE Air e5M wireless ultrasound scanner Philips Lumify portable ultrasound transducers DRSONO Tri-scan Max three-array handheld ultrasound scanner EchoNous Kosmos portable ultrasound probes
Seven systems reviewed Select a system to jump directly to its review.

Handheld ultrasound systems can look similar in a product photo while differing substantially in probe coverage, software access, mobile-device compatibility, data export and long-term cost. This guide compares seven current systems using information that can be checked before purchase and identifies the workflow questions that product specifications alone cannot answer.

Quick shortlist by purchasing priority

Priority System to investigate
Broad array coverage with no required annual app fee DRSONO Tri-Scan Max
Single wired probe with a mature cloud and education ecosystem Schmetterling iQ3
Wireless curved + linear coverage in a compact dual-head design GE HealthCare Vscan Air CL
Wireless phased + linear coverage with membership-based cloud and DICOM tools Clarius PAL HD3
Separate, specialty-specific transducers with no subscription Philips Lumify
Wireless convex + linear platform with hospital-oriented workflow tools Mindray TE Air e5M
Advanced cardiac Doppler, AI tools and modular transducer configurations EchoNous Kosmos

These are shortlist cues, not rankings. Availability, features and pricing vary by country, software version and purchasing channel.

How we compared these systems

We compared publicly available information on probe coverage, purchase price, required software fees, device compatibility, DICOM and reporting workflows, warranty terms and deployment requirements. Prices and terms were verified on August 11, 2026. DRSONO products were assessed using current product documentation and direct application experience; competitor information was based on manufacturer and publicly available purchasing sources. The seven systems were not tested under a standardized head-to-head clinical protocol.

How this guide was researched

DRSONO sells some of the ultrasound systems discussed in this guide. Information about DRSONO products is based on direct product and app experience. Competitor specifications, compatibility, pricing and software terms were verified using publicly available manufacturer documentation as of August 11, 2026. We did not conduct standardized clinical imaging tests across all listed systems. Manufacturer documentation can verify listed features and commercial terms, but it cannot independently establish comparative image quality or clinical performance.

Institutional purchasing perspective

DRSONO has supported purchase-order-based purchasing for hospitals, universities and public-sector organizations. This experience informs the procurement questions covered in this guide, including device compatibility, software access, data export, vendor documentation, warranty, delivery and multi-device planning. These purchases are not presented as clinical endorsements and do not establish comparative image quality or performance.

Seven handheld ultrasound systems at a glance

System Array / connection Public U.S. price & software Best-fit question / key verification
DRSONO Tri-Scan Max Linear + convex + phased capability Drahtlos $3,599 No required annual app fee Need broad coverage in one handheld? Verify phone/tablet compatibility, static-DICOM limits and representative images.
Schmetterling iQ3 Single silicon probe; linear, curved and phased emulation Wired to mobile device $3,899 Membership: $299/yr Core or $420/yr Advanced Five-year Advanced option: $1,500 Need one probe plus cloud, education and organization tools? Verify plan-gated features and connector/device fit.
GE Vscan Air CL Curved + linear Wireless dual-head $4,999 base Innovations and digital-tool subscriptions optional Need wireless deep and superficial coverage without phased array? Verify optional software, battery/heat and DICOM workflow.
Clarius PAL HD3 Phased + linear Wireless dual-array $5,395 scanner Essentials is optional for scanner operation. Cloud, education, specialty packages and advanced tools require Essentials. $695/yr · $1,785/3 years · $2,500 one-time Need cardiac plus superficial imaging in one wireless unit? Verify which advanced imaging, cloud and specialty features require Essentials, along with scan duration and abdominal fit.
Philips Lumify Separate S4-1, L12-4 and C5-2 transducers Wired Approx. $12,028 per transducer Approx. $36,083 for C5-2 + L12-4 + S4-1 Core software listed without a required subscription; optional Reacts: $1,060/5 years Need specialty-specific transducers and established DICOM/PACS workflow? Price the exact transducer set, display device and optional services. Public distributor reference—not a Philips direct quote.
Mindray TE Air e5M Convex + linear Wireless 2-in-1 Approx. $4,000–$4,499 No required subscription stated Excludes optional accessories, display device and service agreements Need a wireless hospital-oriented workflow with broad non-phased coverage? Confirm whether Air Capsule, charging accessories, warranty and service agreements are included.

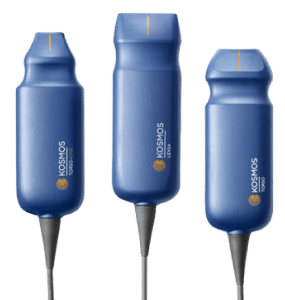

EchoNous Kosmos Torso-One phased + Lexsa linear Modular; compatible tablet/Bridge From $7,700 to under $21,000 Varies by Kosmos Mobile, Vascular Access or Kosmos Plus configuration Need advanced cardiac Doppler/AI and modular deployment? Normalize the probes, tablet or Bridge, stand, software, AI tools and service package before comparing totals.

Price note: Figures above reflect public U.S. manufacturer pricing or clearly identified public distributor references verified on August 11, 2026. Approximate figures are not direct manufacturer quotes unless stated. Taxes, shipping, display devices, accessories, optional warranties, training, integrations and institution-specific plans are excluded. Final pricing depends on the selected probes, hardware, software and service package.

Accuracy & clinical fit

Which handheld ultrasound is the most accurate?

There is no credible universal “most accurate” handheld ultrasound based on public specifications alone. Image performance depends on the integrated transducer and system, exam type, imaging depth, preset, software processing, patient factors and operator technique.

A device that performs well for a superficial vascular exam may not be the right system for a deep abdominal or cardiac window. The more useful question is whether a system performs consistently for the specific views, patients and workflow your practice requires.

The practical answer

Use published specifications to build a shortlist. Use representative images, cine clips, exact-device compatibility and workflow evaluation to make the final decision.

Evidence checklist

What specifications can—and cannot—tell you

Separate documented facts from the performance questions that still need practical confirmation.

Can usually be verified from current documentation Requires workflow-specific confirmation
Array architecture and published frequency range Representative image and cine evidence for the views you need
Imaging modes and named software tools Doppler sensitivity, control behavior and measurement workflow
Published imaging depth, weight and battery claims Performance for the intended patient population and daily workload
Supported operating systems and listed mobile devices Exact-device compatibility, connection stability, heat and practical scan time
Public price, required software fees and warranty terms Preset fit, training requirements and learning curve
Published DICOM, storage and export capabilities End-to-end patient, reporting, export and PACS workflow

The American Institute of Ultrasound in Medicine notes that isolated specifications such as beamformer channels, frame rate and dynamic range do not necessarily predict the performance an end user will experience. It recommends standardized performance measures and input from the clinical and technical users involved in the purchasing decision.

Read the AIUM purchasing statement
Detailed system reviews

The seven systems compared

Each review focuses on clinical fit, array coverage, software access, connectivity and the workflow details buyers should confirm before selecting a system.

01 / 07 Integrated three-array platform

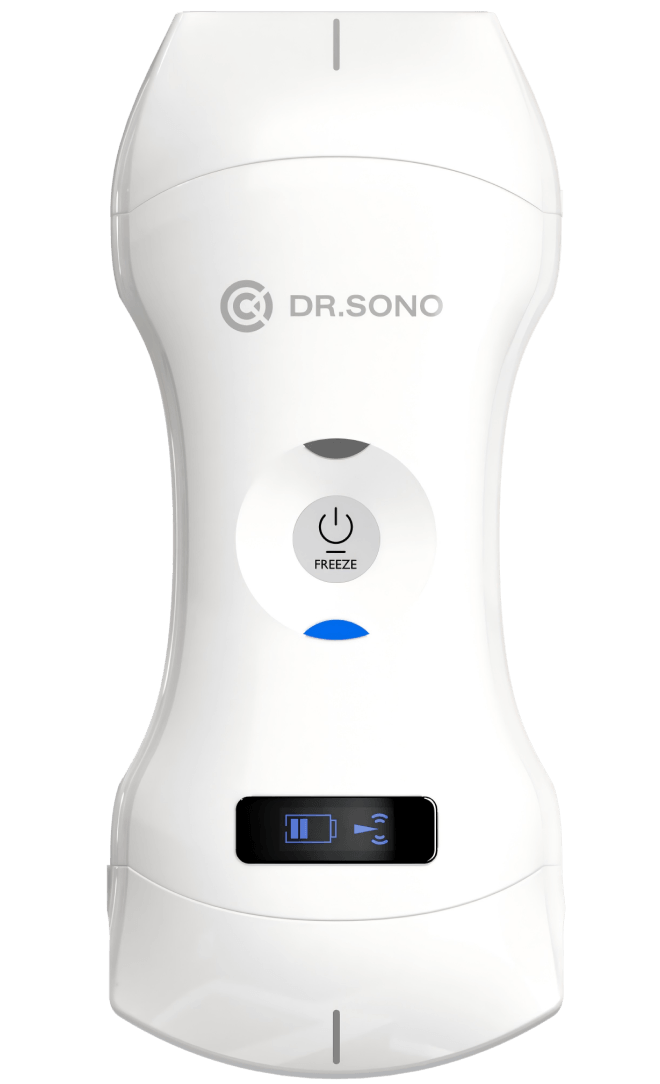

DRSONO Tri-scan Max handheld ultrasound scanner
Linear Konvex Phased array
DRSONO No required annual app fee

Tri-Scan Max

Best fit

Independent clinicians, mobile POCUS users and smaller programs that need superficial, abdominal, lung and focused cardiac coverage in one wireless device.

Editorial verdict

A strong value-led option when broad array coverage and predictable software costs matter more than an enterprise cloud-centered ecosystem.

Tri-scan Max combines linear, convex and phased-array capability in one dual-ended wireless scanner. Its imaging modes, built-in presets, measurements and reporting tools support a practical workflow across varied point-of-care applications.

Clinical coverage

Superficial and vascular · MSK · Abdominal and OB/GYN · Lung · Focused cardiac imaging

View specifications
Decision snapshot

The facts most likely to affect the purchase

Published U.S. price $3,599

One-time scanner price

Array coverage Three types

Lineare, konvexe und phasengesteuerte Anordnung

Required annual app fee $0

Core app access without an annual plan

Connection and output Wireless + DICOM

Direct Wi-Fi and saved still-image transfer

Clinical and workflow strengths

Why it stands out

  • Three array types reduce the need to carry and change between several separate scanners across varied POCUS workflows.
  • Color, Power and PW Doppler, Cine Loop, measurements and reporting tools remain within one core app workflow.
  • The absence of a required annual software plan makes ongoing ownership costs easier to anticipate.
Trade-offs to consider

Where it may not be the best fit

  • Buyers primarily focused on advanced cardiac imaging may prefer a more cardiac-specialized system.
  • Larger organizations needing centralized user management, fleet controls or extensive cloud services should compare enterprise-focused platforms.
  • Facilities requiring deeper PACS integration should confirm that a saved still-image DICOM workflow meets their requirements.
Before ordering

Verify these three workflow details

  1. 01

    Confirm compatibility with the exact phone, tablet or Windows computer that will be used.

  2. 02

    Confirm whether saved still-image DICOM transfer matches the facility’s PACS requirements.

  3. 03

    Review representative images or the hands-on video for the intended examinations.

Evidence basis DRSONO product documentation and direct experience with the current scanner and application workflow.

Manufacturer source
02 / 07 Single silicon whole-body probe
Butterfly iQ3 handheld ultrasound probe
Linear Konvex Phasenweise
Butterfly Network Membership required

Schmetterling iQ3

Best fit

Clinicians and organizations that want one whole-body probe supported by cloud storage, education and an expanding suite of advanced software tools.

Editorial verdict

One of the most software-rich single-probe options in this comparison. Its strongest case is the combination of whole-body imaging, cloud workflow and advanced tools; the main purchasing consideration is membership cost and plan-gated functionality.

Butterfly iQ3 uses a semiconductor-based Ultrasound-on-Chip platform to provide linear, convex and phased-array imaging formats from one wired probe. It supports more than 20 clinical applications, with additional Doppler, AI and advanced imaging tools available through the applicable membership.

Clinical coverage

Abdominal · Cardiac · Lung · Vascular access · MSK and nerve · OB/GYN · Bladder · Small-organ and pediatric imaging

Review pricing & membership
Decision snapshot

The facts most likely to affect the purchase

Published U.S. probe price $3,899

Probe with a three-year listed warranty

Core membership $299 / year

Core imaging, cloud storage and education

Advanced membership $420 / year

Or $1,500 for five years of software access

Connection and platform Wired mobile

Compatible iOS and Android devices

Hardware and membership are priced separately. Exact features can vary by membership, software version and country.

Clinical and workflow strengths

Why it stands out

  • One 1–12 MHz silicon probe provides linear, convex and phased-array imaging formats across more than 20 clinical applications.
  • Advanced plans add Power and Pulsed-Wave Doppler together with tools such as Biplane Imaging, Needle Viz, iQ Slice and iQ Fan.
  • Cloud storage, education and collaboration tools create a broader ecosystem for training, review and program development.
Trade-offs to consider

Where it may not be the best fit

  • Buyers seeking a scanner without required software fees must add membership cost when comparing long-term ownership.
  • Core membership does not include every Doppler, AI or advanced imaging tool listed for the iQ3 platform.
  • The probe connects by cable to compatible iOS or Android devices; Windows is not listed as a supported scanning platform.
Before ordering

Verify these three purchasing details

  1. 01

    Confirm the exact phone or tablet model, operating-system version and physical connector required for the probe.

  2. 02

    Confirm which membership includes the required Doppler, AI, procedural and advanced imaging tools.

  3. 03

    Obtain written confirmation and pricing for the required DICOM/PACS, worklist, HL7 or organization-level workflow.

Evidence basis Butterfly’s published U.S. pricing, iQ3 technical specifications and product documentation. Prices and plan availability may change.

Official pricing
03 / 07 Wireless curved and linear dual probe
GE HealthCare Vscan Air CL wireless dual-head ultrasound probe
Linear 3–12 MHz Curved 2–5 MHz
GE HealthCare Optional software subscriptions

Vscan Air CL

Best fit

Clinicians who prioritize cordless superficial and deep imaging, established manufacturer support and configurable DICOM/PACS workflow without requiring phased-array cardiac coverage.

Editorial verdict

A polished wireless dual-head system for buyers who need linear and curved-array imaging with established clinical workflow support. Its main limitations are the absence of phased-array coverage and the added cost of optional software packages.

Vscan Air CL combines a 3–12 MHz linear transducer for superficial imaging with a 2–5 MHz curved transducer for deeper applications. The cordless probe supports B-mode, M-mode, Color Doppler and Pulsed-Wave Doppler through compatible Apple and Android devices.

Clinical coverage

Abdominal · OB/GYN · Lung · MSK · Vascular access · Small-organ and superficial imaging

Review pricing & options
Decision snapshot

The facts most likely to affect the purchase

Published U.S. base price $4,999

Dual probe, case, charger and three-year warranty

Array coverage Curved + linear

Deep and superficial imaging; no phased array

Innovations upgrade $500 / year

Or $1,299 for a three-year software license

Digital Tools option $1,080 / 3 years

MyRemoteShare and Verisound Gallery

The base package supports core scanning functions. Auto Bladder Volume, HD-SRI and additional digital services are offered through optional software packages.

Clinical and workflow strengths

Why it stands out

  • The cordless dual-head design moves between superficial and deep imaging without a probe cable or separate transducer.
  • B-mode, M-mode, Color Doppler and Pulsed-Wave Doppler are available across a compact 205-gram handheld platform.
  • GE documents DICOM worklist, PACS storage and network export options for facilities that need a structured imaging workflow.
Trade-offs to consider

Where it may not be the best fit

  • The CL model does not include a phased-array transducer, so buyers prioritizing focused cardiac imaging should compare other models.
  • Optional Innovations and Digital Tools packages can materially increase total ownership cost beyond the $4,999 base price.
  • GE lists up to 50 minutes of scan time per charge, which should be considered for high-volume or extended scanning sessions.
Before ordering

Verify these three purchasing details

  1. 01

    Confirm that the exact Apple or Android phone or tablet appears on GE HealthCare’s current compatibility list.

  2. 02

    Determine whether Auto Bladder Volume, HD-SRI, remote sharing or cloud gallery access is required before pricing the package.

  3. 03

    Confirm the required DICOM server, modality worklist, PACS and network-export configuration with the facility’s IT team.

Evidence basis GE HealthCare’s published U.S. pricing, Vscan Air CL specifications and workflow documentation. Prices and optional services may change.

Manufacturer specifications
04 / 07 Wireless phased and linear dual-array system
Clarius PAL HD3 wireless phased and linear array ultrasound scanner
Phased array Linear array
Clarius Essentials optional for scanner operation

PAL HD3

Best fit

Critical care, emergency medicine, EMS and primary-care users who need cardiac and deep imaging together with high-frequency vascular and superficial coverage in one wireless scanner.

Editorial verdict

A distinctive wireless option for buyers who regularly move between cardiac, lung and vascular imaging. Its phased-plus-linear design is clinically focused, but the higher hardware price and membership-gated workflow features require careful cost review.

PAL HD3 combines a low-frequency phased array for cardiac, lung and deeper imaging with a high-frequency linear array for vascular, procedural and superficial applications. Its published frequency range extends from 1–15 MHz with imaging depth up to 40 cm.

Clinical coverage

Cardiac · Lung · Vascular access and DVT · Abdomen and eFAST · MSK and nerve · Obstetric · Ocular and small-organ imaging

Review pricing & membership
Decision snapshot

The facts most likely to affect the purchase

Published U.S. scanner price $5,395

Includes a three-year standard warranty

Array coverage Phased + linear

Cardiac, deep and superficial imaging

Clarius Essentials $695 / year

Or $1,785 for three years

One-time Essentials $2,500

Alternative to recurring annual billing

The scanner can operate without an active Essentials plan. Pulsed-Wave Doppler, DICOM, cloud exam management, advanced tools and education are among the functions associated with Essentials.

Clinical and workflow strengths

Why it stands out

  • The integrated phased and linear arrays support rapid transitions between cardiac, lung, vascular and procedure-oriented workflows.
  • Its broad 1–15 MHz published range and maximum depth of 40 cm cover both high-frequency superficial and deeper imaging requirements.
  • Essentials adds DICOM, unlimited cloud storage, exam management, education, voice controls and advanced software features.
Trade-offs to consider

Where it may not be the best fit

  • Buyers needing PW Doppler, DICOM or cloud management must include an Essentials plan when comparing total ownership cost.
  • PAL HD3 does not include a dedicated curved array, so abdomen- or OB-focused buyers should compare transducer format and representative images carefully.
  • Clarius lists approximately 60 minutes of scan time and recommends a maximum continuous exam duration of about 20 minutes.
Before ordering

Verify these three purchasing details

  1. 01

    Confirm the exact iOS or Android device and operating-system version; ChromeOS is not listed as supported.

  2. 02

    Identify which required imaging, DICOM, reporting and cloud features remain available without an active Essentials plan.

  3. 03

    Review cardiac, abdominal and superficial images together with scanner temperature and expected exam-duration requirements.

Evidence basis Clarius PAL HD3 product information, U.S. store pricing and current Essentials plan details. Features and availability may vary by region.

Manufacturer specifications
05 / 07 Three separate specialty transducers

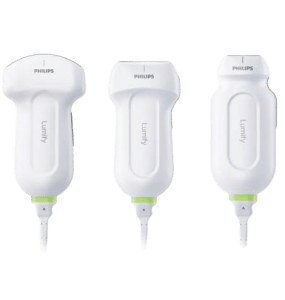

Philips Lumify curved, linear and phased-array ultrasound transducers
C5-2 curved L12-4 linear S4-1 phased
Philips Outright purchase model

Lumify

Best fit

Hospitals and clinical teams that value Philips imaging, established support and dedicated specialty transducers—and can justify a higher multi-probe budget.

Editorial verdict

A strong institution-oriented choice when transducer-specific imaging, Philips workflow and procurement support matter more than having every array type in one handheld. The principal trade-off is the cost and handling of three separate probes.

Lumify is a wired, app-based platform built around separate C5-2 curved, L12-4 linear and S4-1 phased-array transducers. Each probe connects to a compatible mobile device and provides presets and imaging modes for its intended clinical applications.

Clinical coverage

Abdominal and OB/GYN · Cardiac and FAST · Vascular access · MSK and superficial · Lung

Review probe pricing
Decision snapshot

The facts most likely to affect the purchase

Public price reference Approx. $12,028

Per transducer; not an official Philips quote

Three-probe example Approx. $36,083

C5-2, L12-4 and S4-1 at the cited public price

Probe coverage Three transducers

Separate curved, linear and phased-array probes

Software and connection Core app included

Wired connection to a compatible mobile device

Philips currently directs U.S. buyers to contact sales or configure a quote. Public distributor pricing is included only as a market reference; confirm the exact transducer, cable, warranty, accessories and software services in writing.

Clinical and workflow strengths

Why it stands out

  • Dedicated curved, linear and phased-array formats allow buyers to select Philips transducers around exact anatomy and workflow.
  • The three-probe portfolio covers cardiac, abdominal, obstetric, lung, vascular, nerve, MSK and superficial applications.
  • Philips support and procurement infrastructure may suit hospitals, clinical networks and standardized institutional deployments.
Trade-offs to consider

Where it may not be the best fit

  • Full three-array coverage requires purchasing, carrying and switching between three physical transducers.
  • Purchasing all three probes can place the total cost well above integrated multi-array handheld systems.
  • The wired probe-to-device connection may not suit buyers prioritizing completely cable-free scanning.
Before ordering

Verify these three purchasing details

  1. 01

    Confirm which exact transducers are required: C5-2, L12-4, S4-1—or only one or two of them.

  2. 02

    Confirm the intended mobile device, operating system, connector and cable configuration against the current compatibility list.

  3. 03

    Verify that the written quote includes the required warranty, accessories and DICOM/PACS workflow.

Evidence basis Philips Lumify product and transducer documentation together with a current public U.S. distributor price reference. Final Philips pricing remains quote-based.

Manufacturer specifications
06 / 07 AI-enabled phased and linear POCUS platform
EchoNous Kosmos portable ultrasound probes
Torso-One phased Lexsa linear
EchoNous Configuration-based pricing

Kosmos

Best fit

Critical care, emergency and cardiac teams that want advanced Doppler and AI-assisted workflows in a portable, institution-oriented ultrasound platform.

Editorial verdict

One of the most clinically capable portable platforms in this comparison, particularly for cardiac POCUS. Its advanced feature set is a meaningful strength, but buyers should verify exactly which probes, AI tools and software licenses are included in the quoted configuration.

Kosmos combines the Torso-One phased-array probe for cardiac, lung, abdominal and bladder imaging with the Lexsa linear probe for vascular, nerve, MSK and superficial applications. Depending on the package, it can be paired with a compatible tablet or supplied as a more complete mobile or stand-based system.

Clinical coverage

Cardiac and hemodynamics · Critical care and FAST · Abdominal and lung · Vascular access · Nerve and MSK

Review configuration costs
Decision snapshot

The facts most likely to affect the purchase

Kosmos Mobile From $7.7K

Official U.S. starting price for a mobile configuration

Kosmos Plus Under $21K

More complete tablet and medical-stand configuration

Probe coverage Phased + linear

Torso-One and Lexsa are separate wired transducers

Advanced software Verify the license

Access can depend on package, platform and market

The $7.7K figure is a starting price rather than a guaranteed dual-probe total. Request an itemized quote showing the exact transducers, tablet, accessories, Doppler modes, AI tools, software terms and warranty.

Clinical and workflow strengths

Why it stands out

  • Torso-One supports cardiac-focused capabilities including Color Doppler, PW, CW and TDI in applicable configurations.
  • AI-assisted tools can support workflows such as ejection fraction, FAST view identification, Doppler placement and preset selection.
  • Adding the Lexsa linear probe expands the platform to vascular access, nerve, lung, MSK and superficial imaging.
Trade-offs to consider

Where it may not be the best fit

  • Full torso and superficial coverage requires purchasing and carrying two separate wired transducers.
  • The total price can rise considerably when a second probe, tablet, medical stand and advanced software are added.
  • Device compatibility and feature availability can differ by operating system, configuration and geographic market.
Before ordering

Verify these three purchasing details

  1. 01

    Confirm whether the price includes Torso-One, Lexsa or both—and whether the tablet, carrying case or medical stand is included.

  2. 02

    Identify which Doppler and AI features are activated and whether access is permanent or subject to a separate license term.

  3. 03

    Confirm that the selected tablet and operating system support the required DICOM/PACS, reporting and export workflow.

Evidence basis EchoNous product, pricing, compatibility and Kosmos configuration documentation. U.S. prices are published as starting or maximum package references rather than one fixed system price.

Manufacturer specifications
07 / 07 Wireless integrated linear and convex system
Mindray TE Air e5M wireless handheld ultrasound system
Linear format Convex format
Mindray No required subscription

TE Air e5M

Best fit

General POCUS, primary-care and hospital teams that want wireless superficial and deep imaging in one probe, with broad presets, Doppler tools and no required software subscription.

Editorial verdict

A well-equipped wireless option for buyers who want linear and convex imaging without carrying separate probes. Its workflow tools and no-subscription model strengthen the value, but cardiac-focused buyers should compare the dedicated phased-array TE Air i3P before choosing the e5M.

TE Air e5M combines linear and convex imaging formats in one wireless 128-element transducer. Its published 2–9 MHz bandwidth, imaging depth up to 40 cm and 20-plus presets support superficial, procedural, abdominal, obstetric, lung and selected cardiac workflows.

Clinical coverage

Vascular access · Nerve and MSK · Small organs · Abdomen and FAST · OB/GYN · Bladder and urology · Lung and pleural · Selected cardiac imaging

Review price and workflow
Decision snapshot

The facts most likely to affect the purchase

Published U.S. starting price $4,499

Confirm the current package and purchasing channel

Array coverage Linear + convex

Two imaging formats in one wireless transducer

Software model No subscription

Current U.S. information lists purchase-time costs

Battery performance 90–120 minutes

Published mixed-use B-mode scanning reference

Direct Mindray North America information lists a three-year standard warranty, but warranty terms can vary through authorized agents or third-party sellers. Confirm whether the charging cable, Air Capsule, mobile device, support and optional features are included.

Clinical and workflow strengths

Why it stands out

  • Integrated linear and convex formats reduce physical probe changes across superficial, procedural and deeper scanning workflows.
  • B, M, Color, Power and PW Doppler are supported, together with workflow tools such as iTouch+, iWorks and iScanHelper.
  • Smart Bladder, Smart Calc and PW Auto Calc provide assisted measurements while retaining clinician review and control.
  • Wireless mobile operation, DICOM Store, Worklist and supported PC workflows provide several documentation and transfer options.
Trade-offs to consider

Where it may not be the best fit

  • The e5M does not provide a dedicated phased-array format; buyers prioritizing cardiac POCUS should also evaluate the TE Air i3P.
  • The expected 90–120-minute scanning time is shorter than some handheld systems designed for longer mobile sessions.
  • Phone and tablet compatibility is model-specific, and the clinician may need to supply a compatible display device.
  • Included accessories, optional software features and warranty terms can vary by seller and regional configuration.
Before ordering

Verify these three purchasing details

  1. 01

    Confirm that the quote is specifically for TE Air e5M rather than the cardiac-focused TE Air i3P or a differently configured package.

  2. 02

    Verify the exact phone, tablet or PC, operating-system version and network configuration required for your workflow.

  3. 03

    Confirm the included charger, Air Capsule, warranty, DICOM/PACS workflow, training and any optional software features in writing.

Evidence basis Mindray TE Air e5M product information, North American technical specifications and current U.S. store pricing references. Package contents and feature availability can vary by channel and region.

Manufacturer specifications
04 · Probe coverage

Start with the anatomy—not the brand

Probe format determines which anatomy can be reached comfortably and how the ultrasound beam enters the body. Before comparing software or price, confirm that the system provides the array types required for your intended examinations.

Ultrasound fundamentals

Three probe formats—and the imaging fields they produce

The probe footprint and beam geometry affect access between structures, field width and the depth at which the system is commonly used.

Educational comparison of linear, convex and phased-array ultrasound probes and their imaging fields
Simplified probe and beam-shape comparison. Actual field of view, frequency and penetration vary by system, preset and examination.
01

Linear array

A flat footprint produces a rectangular field with strong near-surface detail.

Common applications

Vascular access · MSK · Nerve · Thyroid · Small parts

02

Curved / convex array

A curved footprint opens into a wider field for deeper structures and larger anatomy.

Common applications

Abdomen · OB/GYN · Renal · Bladder · General deep imaging

03

Phased array

A small footprint produces a sector-shaped field that can scan between the ribs.

Common applications

Cardiac · Lung · eFAST · Intercostal and deep imaging

The array name describes the imaging geometry. It does not by itself establish image quality. Frequency range, processing, presets, penetration, ergonomics and representative clinical images still need to be evaluated.

Array delivery matrix

How the seven systems provide probe coverage

Integrated Separate probe Electronic format No dedicated array
System Linear Curved Phasenweise How coverage is delivered
DRSONO Tri-scan Max handheld ultrasound scanner DRSONO Tri-Scan Max
Integrated Integrated Integrated One wireless dual-ended scanner with three-array capability
Butterfly iQ3 handheld ultrasound probe Butterfly iQ3
Electronic Electronic Electronic One wired silicon probe electronically changes imaging format
GE HealthCare Vscan Air CL wireless ultrasound scanner GE HealthCare Vscan Air CL
Dedicated Dedicated Not included One wireless dual-headed scanner with linear and curved arrays
Clarius PAL HD3 wireless ultrasound scanner Clarius PAL HD3
Dedicated Not included Dedicated One wireless scanner combining phased and linear arrays
Philips Lumify curved linear and phased-array transducers Philips Lumify
L12-4 C5-2 S4-1 Three separate wired transducers provide full array coverage
EchoNous Kosmos handheld ultrasound probes EchoNous Kosmos
Lexsa Not included Torso-One Two separate wired probes for torso and superficial imaging
Mindray TE Air e5M wireless handheld ultrasound scanner Mindray TE Air e5M
Integrated format Integrated format Not included One wireless transducer switches between linear and convex formats

“Integrated” describes coverage available without purchasing or carrying another transducer. “Electronic format” indicates that one transducer changes the displayed imaging geometry rather than containing three conventional dedicated arrays.

Clinical starting point

Match the first probe to the exams performed most often

Vascular, MSK and procedures Prioritize linear-array performance and superficial image detail.

Abdominal and OB/GYN Prioritize curved-array field width, penetration and relevant presets.

Cardiac and intercostal imaging Prioritize a small phased-array footprint and representative cardiac images.

Buyer takeaway

A system covering more array formats is not automatically the better purchase. The strongest choice is the one that covers your frequent examinations with the fewest compromises in image quality, workflow, device changes and total configuration cost.

05 · Pricing and software fees

Compare the cost of the usable configuration—not just the probe

A handheld scanner’s advertised price may cover one probe, several array formats or only the hardware. Software plans, additional transducers, compatible display devices and workflow features can materially change the real purchasing budget.

01

Hardware coverage

Determine whether the price covers one array, multiple electronic formats or several physical transducers.

02

Software access

Separate required membership fees from optional AI, cloud, education and collaboration services.

03

Clinical configuration

Add the probes, display device, accessories and data workflow needed for the examinations your team will actually perform.

U.S. purchasing reference

Published prices and ongoing software exposure

Published price Public reference Quote dependent
System Published entry price Software cost Five-year perspective What the first price may leave out
DRSONO Tri-scan Max handheld ultrasound scanner DRSONO Tri-Scan Max Three-array capability
$3,599 Published

One wireless scanner

 No required fee

Core app, imaging modes and software updates included

 $0 required software cost

Base scanner remains $3,599 before optional upgrades

 Optional extended warranty or mobile trolley; compatible phone, tablet or Windows computer
Butterfly iQ3 handheld ultrasound probe Butterfly iQ3 Single electronic probe
$3,899 Published

Probe price before membership

 Membership required

Core: $299/year
Advanced: $420/year
Advanced five-year option: $1,500

$5,394–$5,999

Probe plus five years of Core or annual Advanced; five-year Advanced upfront totals $5,399

Confirm the membership tier needed for PW Doppler, Power Doppler, advanced imaging tools, AI and integration
GE HealthCare Vscan Air CL wireless ultrasound scanner GE HealthCare Vscan Air CL Linear and curved arrays
$4,999 Published

Dual-headed wireless probe package

 Core use without add-on

Innovations: $500/year or $1,299/three years
Digital tools: $1,080/three years

Configuration dependent

Base hardware is $4,999; optional software and digital services can increase ongoing cost

Optional Innovations features, digital workflow tools, education and any department-specific services
Clarius PAL HD3 wireless ultrasound scanner Clarius PAL HD3 Phased and linear arrays
$5,395 Published

Scanner hardware

 Essentials feature plan

$695/year
$1,785/three years
$2,500 one-time

$7,895–$8,870

Scanner plus one-time Essentials or five annual Essentials payments

Buyers needing PW Doppler, DICOM, cloud exam management and advanced tools should include Essentials
Philips Lumify curved linear and phased-array transducers Philips Lumify Separate specialty transducers
Approx. $12,028 Public reference

Per transducer; not an official Philips quote

 Core software included

Outright-purchase core app and software updates; optional services should be quoted separately

Approx. $36,083

Public-price example for C5-2 + L12-4 + S4-1 before quote adjustments

The first price covers one transducer. Full curved, linear and phased coverage requires three physical probes
EchoNous Kosmos handheld ultrasound probes EchoNous Kosmos Configuration-based platform
From $7,700 Configuration based

Kosmos Mobile reference; Kosmos Plus listed under $21,000

 Quote dependent

AI, cardiac tools, workflow software and licensed features vary by package

Written quote required

No reliable single five-year total applies across Mobile, Plus and institutional configurations

Exact probes, display hardware, AI tools, software licenses, accessories, support and integration
Mindray TE Air e5M wireless handheld ultrasound scanner Mindray TE Air e5M Linear and convex formats
$4,499 Starting reference

U.S. handheld system starting point

 No required subscription

Core imaging and app access are not presented as an annual plan

 $0 required software cost

Base reference remains $4,499 before optional configuration items

 Confirm display device, charging capsule, accessories, regional package, warranty and advanced workflow requirements

Prices are U.S. public references reviewed August 25, 2026. Taxes, promotions, institutional discounts, accessories, regional pricing and distributor quotes can change the final purchase amount.

How to read the numbers

Three ownership patterns appear in this comparison

Hardware-led ownership

DRSONO, Philips Lumify and Mindray place the main cost in the purchased hardware, with no required annual core software fee shown.

Membership-led access

Butterfly requires a software membership in addition to the probe. The selected tier determines access to advanced modes and tools.

Optional or configured services

GE, Clarius and EchoNous can add advanced software, cloud, education, AI or workflow services according to the selected configuration.

Before accepting a quote

Ask for these costs in writing

  1. 01

    The exact probe or transducer configuration and every included accessory.

  2. 02

    Required annual fees and which imaging or workflow functions stop if the plan expires.

  3. 03

    Compatible display-device, DICOM/PACS, warranty, support and institutional integration costs.

Buyer takeaway

Do not compare a one-probe price with a three-array configuration as if they purchase the same clinical coverage. Define the required exams first, then compare the hardware and software cost of reaching that same practical endpoint.

06 · Device compatibility

“Supports iOS” is only the first compatibility question

A handheld ultrasound system depends on its display device, operating system, connector and network behavior. Confirm the exact phone or tablet model—not only the platform logo—before placing an order.

01
Platform

iOS, iPadOS, Android or Windows

02
Exact device

Phone or tablet model and processor

03
OS version

Current release and planned updates

04
Clinical workflow

Connection, storage and security policy

Platform comparison

Display-device support across the seven systems

Platform supported Selected devices Not listed for scanning
System iOS / iPadOS Android Windows Probe connection What to verify
DRSONO Tri-Scan Max Supported

iPhone and iPad

 Supported

Phones and tablets

 Supported

Windows application

 Drahtlos

Direct scanner Wi-Fi connection

 Confirm the exact device before ordering. Current guidance flags Samsung S25 Ultra as incompatible; iPhone 17 uses the Wireless USG Flash app.
Butterfly iQ3 Selected devices

Official device list applies

 Selected devices

Official device list applies

 Not listed

No Windows scanning app

 Wired

Probe connects directly to the mobile device

 Check the exact device, connector, operating-system version and membership-dependent workflow before purchase.
GE HealthCare Vscan Air CL Qualified devices

Device and OS combinations listed by GE

 Qualified devices

Device and OS combinations listed by GE

 No live scanning

PC display is not the standard scanning route

 Drahtlos

Probe pairs with the Vscan Air app

 GE maintains a model-specific list and known limitations. Major OS upgrades should be checked before installation.
Clarius PAL HD3 iOS 16+

Compatible listed Apple devices

 Android 13+

Compatible listed Android devices

 Not supported

ChromeOS is also not supported

 Drahtlos

5 GHz Wi-Fi with Bluetooth setup support

 Confirm the smart-device model, current OS and whether local or cloud storage requires an active plan.
Philips Lumify Selected devices

Platform-specific accessories apply

 Selected devices

Official compatibility list applies

 Not listed

No Windows scanning configuration

 Wired

Transducer and cable connect to the mobile device

 Confirm whether the quote is for Android or iOS and which cable, power module and accessories are included.
EchoNous Kosmos Selected iPads

M-series iPads with supported iPadOS

 Selected tablets

Specific Android tablet models

 Not listed

No Windows scanning configuration

 Wired

Torso-One or Lexsa connects to a qualified tablet

 Kosmos supports a narrower tablet list than a general “iOS/Android” description suggests. Confirm model and country.
Mindray TE Air e5M Supported

iPhone and iPad app route

 Supported

TE Air Android application

 Not listed

No standard Windows scanning app

 Drahtlos

Probe connects to the TE Air app

 Confirm the exact phone or tablet, app-region availability, operating-system version and firmware pairing.

“Supported” identifies the operating-system family, not universal compatibility with every phone or tablet. Manufacturer qualification lists and known limitations can change after new devices or major OS releases.

Connection behavior

Wireless and wired systems create different workflow constraints

Wireless systems

Freedom from the probe cable

The scanner commonly creates a direct Wi-Fi connection to the display device. The phone may show “No Internet” while scanning because that Wi-Fi link is communicating with the probe.

  • Less cable interference around the patient
  • Connection quality depends on the mobile device and environment
  • Internet-dependent tasks may require switching networks
Wired systems

A physical link to the display

The probe connects directly to a compatible phone or tablet. The connection is not dependent on wireless probe-to-device signal quality, but the cable and connector become part of the workflow.

  • Mobile internet or Wi-Fi can remain available during scanning
  • Connector type and cable configuration must match the device
  • Cable handling and replacement should be considered
Department-level decision

Personal device or dedicated clinical display?

A personal phone may be convenient for individual use, but a dedicated clinical tablet can simplify availability, cleaning, user access, app updates and patient-data policies. Institutions should decide who owns, updates and secures the display device before deployment.

Verify before buying

Send the exact device details—not only “iPhone” or “Android”

  1. 01

    Full phone or tablet model name and generation

  2. 02

    Current operating-system version

  3. 03

    Connector type, available storage and institutional restrictions

  4. 04

    Whether the device will be updated automatically after deployment

Buyer takeaway

The most flexible platform is not necessarily the one with the longest compatibility list. A validated device, stable OS version, reliable connection and clear update policy matter more than a general “iOS and Android supported” claim.

07 · DICOM and workflow

“DICOM supported” does not describe the complete workflow

Buyers should confirm how an exam is created, associated with a patient, stored and transferred. DICOM Store, Modality Worklist, cloud management and video export are separate capabilities—and may depend on a software plan or network configuration.

01
Acquire

Live scan, measurements and annotations

02
Identify

Patient data, exam order or worklist entry

03
Save

Still image, clip, report or cloud exam

04
Transfer

PACS, server, shared folder or local archive

Three terms to separate

The word “DICOM” can refer to different parts of the exam

01

DICOM Store

Sends completed images or supported studies from the ultrasound application to a PACS or DICOM image server.

Ask: What image and clip formats are actually transferred?
02

Modality Worklist

Retrieves scheduled patient and order information so users do not need to re-enter every field manually.

Ask: Is Worklist included, licensed or institution-only?
03

Cine and video

A scanner may save clips locally or as MP4 video without sending those clips to PACS as DICOM cine objects.

Ask: Are clips transferred to PACS or saved separately?
Workflow comparison

How the seven systems approach storage and transfer

Available Plan or configuration dependent Verify exact workflow
System Primary storage DICOM Store Worklist Clip handling Key dependency
DRSONO Tri-Scan Max Local-first

Images, clips and reports save to the connected device

 Saved still images

Supported still-image DICOM transfer

 Network setup

Requires a compatible server and configuration

 Separate video

Cine Loop clips save separately as video—not full DICOM cine

 Compatible server, network routing and PACS acceptance should be tested before deployment
Butterfly iQ3 Compass cloud

Cloud-centered study and collaboration workflow

 Plan dependent

PACS integration depends on membership or organization setup

 Integration dependent

Available through configured DICOM integrations

 Cloud workflow

Confirm study download and PACS clip behavior by plan

 Selected membership, organization plan, integration license and institutional network configuration
GE HealthCare Vscan Air CL App archive

Images and video clips can be stored within the app workflow

 Supported

DICOM image-server and Secure DICOM configuration available

 Supported

Modality Worklist server configuration is documented

 Verify server route

Confirm the intended image and video export destination

 Same-network access, AE/server settings, TLS requirements and institutional server acceptance
Clarius PAL HD3 Local + cloud

Cloud storage and exam management are associated with Essentials

 Essentials

DICOM is included among Essentials workflow functions

 Confirm requirement

Verify the exact Worklist and server configuration needed

 DICOM / MP4

Published exports include DICOM and MP4 video formats

 Active Essentials access, regional feature availability, network setup and PACS compatibility
Philips Lumify Multiple routes

Local directory, shared network, email and PACS workflows

 Supported

DICOM transfer to configured PACS is supported

 Configuration dependent

Confirm the exact Lumify platform and institutional setup

 Confirm cine route

Verify how cine loops are exported to the intended archive

 Android or iOS configuration, network access, PACS settings and the institution’s written Philips quote
EchoNous Kosmos Device / platform

Storage behavior varies across Bridge, Mobile and Plus

 Supported configurations

DICOM Store is documented for Kosmos workflows

 Supported configurations

DICOM Worklist is available on configured systems

 Package dependent

Confirm DICOM study and MPEG-4 export behavior

 Exact Kosmos package, display platform, licensed functions, network and PACS configuration
Mindray TE Air e5M App workflow

Patient and exam data are managed through the TE Air app

 Supported

DICOM Store is listed for supported institutional workflows

 Supported

Worklist support is listed in the system workflow

 Confirm format

Verify the required still-image and clip destination

 App and probe versions, hospital information-system setup, network access and server validation

Workflow descriptions reflect published capabilities reviewed August 25, 2026. Feature availability can vary by software version, plan, region, display platform and institutional configuration.

Integration reality

A DICOM checkbox does not guarantee a working PACS connection

The ultrasound app and receiving system must agree on server address, ports, AE titles, security requirements and accepted object formats. Wireless probes may also need separate access to the clinical network after or during the examination.

For hospital deployment, test one complete exam—from Worklist retrieval through image review in PACS—before purchasing multiple scanners.

Verify with IT or the PACS team

Use an actual workflow test—not only a feature list

  1. 01

    Can the system retrieve the correct patient and order from Modality Worklist?

  2. 02

    Which still images, measurements, reports and clips arrive in PACS?

  3. 03

    Does transfer work on the intended clinical network and security configuration?

  4. 04

    Which workflow functions require a subscription, license or cloud account?

Buyer takeaway

Individual users may be satisfied with reliable local image and report saving. Hospitals and larger clinical teams should evaluate patient identification, Worklist, PACS transfer, security and archive behavior as one connected workflow.

08 · Warranty and support

What happens after the scanner arrives?

Warranty length matters, but it does not tell the whole support story. Buyers should also compare evaluation time, onboarding, repair logistics and how quickly scanning can resume if a device fails.

Read the policies correctly

Three protections that should not be confused

01
Evaluation or return window

The period for deciding whether a newly purchased system fits the intended workflow.

02
Product warranty

Coverage for qualifying defects during a stated period, subject to the written exclusions.

03
Support and uptime

The people, training, troubleshooting and replacement process that determine how quickly a problem is resolved.

Support lifecycle

Coverage should extend beyond the repair document

01 Before purchase

Compatibility, applications and purchasing questions

02 Initial setup

App connection, device configuration and onboarding

03 Everyday use

Technical help, education and software guidance

04 Failure or repair

RMA, shipping, repair, replacement or loaner arrangements

Published U.S. policy snapshot

Warranty and support across the seven systems

Terms can vary by purchasing channel, configuration and region. Confirm the final coverage in the written order or quotation.

System Published warranty Evaluation and support What the buyer should verify
01 DRSONO Tri-Scan Max Direct brand support 1 year included

Two years total for an additional $200 or three years total for an additional $400.

14-day scan trial

Direct pre-purchase assistance, setup resources and after-sale technical support.

Decide whether the practice needs extended coverage and confirm the return procedure before beginning the evaluation.
02 Schmetterling iQ3 Membership-based platform 3 Jahre

The current iQ3 pricing page lists a three-year warranty.

 Remote platform support

Membership includes access to Butterfly Academy and on-demand educational material.

Confirm current return terms, accidental-damage exclusions, replacement timing and whether required support continues if the membership changes.
03 GE Vscan Air CL Manufacturer service network 3 Jahre

Standard coverage includes access to remote technical and repair depot support.

Training included

The U.S. package includes remote technical support and one 45-minute remote training session.

Review shop return terms, repair-depot turnaround and whether the intended setting requires an additional service option.
04 Clarius PAL HD3 Optional uptime protection 3 Jahre

Standard coverage includes product support, remote technical support and one-way shipping.

30-day risk-free returns

Optional Clarius Care adds loaner or replacement protection and two-way expedited shipping.

Determine whether Clarius Care is needed and review its claim, accidental-damage, battery and regional-availability conditions.
05 Philips Lumify Quotation-controlled coverage Up to 5 years on transducers

Philips lists five years for standard transducers purchased as part of a new Lumify solution. Accessories and included smart devices may have shorter terms.

Remote technical support

Lumify is treated as a remote-support product without scheduled planned maintenance.

Obtain the warranty for every probe, cable, accessory and display in writing because the quotation and purchasing channel control the final terms.
06 EchoNous Kosmos Component-specific coverage 5 years on key components

U.S. coverage lists five years for Bridge, Torso-One, Lexsa and Link, and two years for the Kosmos Tablet G1.

RMA replacement process

EchoNous describes case review followed by a warranty exchange when a qualifying malfunction is confirmed.

Consumer iOS and Android tablets and secondary accessories are not covered by the EchoNous warranty. Confirm shipping responsibility and every included component.
07 Mindray TE Air e5M Channel-dependent service 3 years for direct U.S. purchase

Mindray North America materials describe three-year standard coverage; authorized-agent terms can vary.

Technical phone support

Direct-purchase coverage includes technical support and software performance updates under the stated policy.

Confirm the seller, return policy, Air Capsule and charging-accessory coverage, replacement timing and the exact e5M warranty in writing.

Published terms are summarized for comparison and are not a substitute for the warranty supplied with the final order. Policies may differ outside the United States or when equipment is purchased through a distributor.

Downtime checklist

Ask these questions before relying on one scanner

  1. 01

    Who provides first-line support: the manufacturer, seller or local distributor?

  2. 02

    Who pays outbound and return shipping for an approved warranty claim?

  3. 03

    Is the remedy a repair, replacement or temporary loaner—and what is the expected turnaround?

  4. 04

    Are the battery, charging equipment, cable, tablet and protective accessories covered for the same period?

09 · How to choose

Start with the workflow—not the longest feature list

The best handheld system is the one that covers the examinations, connected device, software model and data path your team will actually use. Complete the four questions below to build a practical two-system shortlist.

Four-question buyer fit check

Build your starting shortlist

Choose one answer in each step.

0 of 4 complete Begin with Question 1
01 Question 1 of 4 What probe coverage matters most? Choose one
02 Question 2 of 4 How should the scanner connect? Choose one
03 Question 3 of 4 Which purchasing model fits? Choose one
04 Question 4 of 4 What happens after the scan? Choose one
Before requesting a quote

Validate the shortlist with four real-world checks

  1. 01
    List the examinations that must be covered

    Separate essential examinations from applications that would only be useful occasionally.

  2. 02
    Confirm the exact display device

    Check the phone or tablet model, operating system, connector and storage requirements.

  3. 03
    Calculate the complete ownership cost

    Include probes, memberships, accessories, coverage and any required mobile device.

  4. 04
    Test the intended data path

    Verify representative images, saved files, DICOM behavior and PACS routing before deployment.

Editorial updates

Stay current with handheld ultrasound

Get occasional POCUS buying guides, product comparisons and practical workflow updates from the DRSONO Editorial Team.

Practical updates only. Unsubscribe anytime.

PORTABLE ULTRASOUND BUYER FAQ

Frequently Asked Questions About Portable Ultrasound Machines

Clear answers to the practical questions clinicians commonly ask before choosing a handheld ultrasound system.

What is the best portable ultrasound machine?

There is no single best system for every clinician. The right choice depends on the examinations you perform, the probe arrays you need, the imaging modes required for your workflow, device compatibility and total long-term cost. A vascular-access clinician may prioritize a high-frequency linear array, while a whole-body POCUS user may need linear, convex and phased-array coverage.

How much does a portable ultrasound machine cost?

Pricing varies considerably according to probe coverage, imaging modes, software tier and included accessories. The purchase price is only part of the calculation. Buyers should also compare subscription fees, compatible device requirements, warranties, accessories and expected costs over three to five years.

Which ultrasound probe type do I need?

Linear arrays are generally used for superficial structures such as vessels, nerves, thyroid and musculoskeletal imaging. Convex arrays provide a wider, deeper field for abdominal, pelvic and obstetric scanning. Phased arrays use a smaller acoustic window and are commonly selected for cardiac and certain thoracic examinations. Clinicians covering multiple applications may benefit from a system that includes more than one array type.

Can a handheld ultrasound be used for cardiac imaging?

Some handheld systems support focused cardiac imaging, but probe design matters. A phased array is typically better suited to imaging through narrow intercostal spaces. Buyers should confirm that the exact system includes the appropriate array, cardiac preset, imaging depth and modes required for their intended examinations.

Do portable ultrasound systems require a subscription?

Not all systems use the same software model. Some include the core app without an annual fee, while others place selected features, storage or workflow tools behind paid plans. Before purchasing, check which functions remain available without a subscription and whether recurring fees affect scanning, measurements, storage, sharing or DICOM workflow.

Does a wireless ultrasound probe need internet access?

Many wireless probes communicate directly with a phone or tablet through a local Wi-Fi connection, so active internet access may not be required during scanning. However, account activation, software updates, cloud storage or remote sharing may still require internet access. Requirements vary by system and should be checked before purchase.

Can handheld ultrasound replace a cart-based system?

Handheld ultrasound can be highly practical for focused point-of-care examinations, bedside assessment, procedural guidance and situations where portability matters. It may not replace a cart-based system for every department or advanced examination. Larger systems can offer broader measurement packages, larger displays, additional transducers and more specialized workflow capabilities.

What should I check before buying a handheld ultrasound?

Start with your intended examinations and required array coverage. Then compare imaging modes, representative clinical images, operating-system compatibility, DICOM capabilities, battery life, cleaning requirements, training resources, regulatory status, warranty, trial or return terms and total recurring cost. The best value is the system that fits the actual clinical workflow—not simply the device with the lowest advertised price.

A practical buying rule

Match the probe arrays to your examinations first. Compare software access and total ownership cost second.

FINAL VERDICT

Which Portable Ultrasound Should You Choose?

There is no universal winner. The strongest choice is the system whose probe coverage, software workflow and long-term cost match the examinations you actually perform.

01
Mainly superficial imaging Prioritize a linear array

A high-frequency linear array is generally the most relevant starting point for vascular access, nerves, thyroid, superficial MSK and other shallow structures.

02
Mainly abdominal or OB imaging Prioritize a convex array

A convex array provides the broader field of view and deeper penetration commonly needed for abdominal, pelvic, obstetric and other general deep-tissue examinations.

03
Multiple POCUS applications Look for broader array coverage

Clinicians moving between superficial, abdominal, lung and focused cardiac examinations should consider whether one system can provide linear, convex and phased-array capability.

Clinical workflow footage
A DRSONO OPTION FOR BROAD-COVERAGE POCUS

One handheld. Three arrays. No annual software subscription.

Tri-scan Max combines linear, convex and phased-array capability in one handheld scanner for clinicians whose workflow extends beyond a single examination type.

  • Linear, convex and phased-array capability
  • B, B/M, Color, PDI and PW imaging modes
  • Compatible with iOS, Android and Windows
Explore Tri-scan Max Ask About Your Workflow

DRSONO manufactures and sells Tri-scan Max. Product selection should be based on intended examinations, professional training and applicable clinical requirements.

TRANSPARENCY & REVIEW PROCESS

How We Researched This Comparison

This guide was built from publicly available manufacturer information and reviewed using the same practical buying criteria across all seven systems.

Last fact-checked August 11, 2026 DRSONO Editorial Team

What we checked

  1. 01
    Official product information

    Manufacturer product pages, published specifications, software documentation, support resources and available pricing pages.

  2. 02
    Consistent comparison criteria

    Probe coverage, purchase price, recurring software fees, device compatibility, DICOM workflow, warranty and practical workflow requirements.

  3. 03
    Regulatory and purchasing details

    Public regulatory information was reviewed where applicable, while pricing and plan details were checked against information available on August 11, 2026.

Search the FDA 510(k) database
See something that needs updating?

Product specifications, prices and software plans change. Send corrections or updated manufacturer documentation to info@drsono.com.

Copyright2026@Drsono.com All right reserved
